MI1100A Display Indicator
Simple Display Indicator Back to list

MI1100A Display Indicator

Migun ST Simple Display Indicator
Quote inquiry Product inquiry

For adoption and detailed specifications, please feel free to contact us.

Brand
MiGunst
Tags

0~10V4~20mARS232RS422/485

Product details

Product Features

  • For platform scales, truck scales (weighbridges) and livestock scales (animal weighing)
  • RS-232C serial interface (current loop), 1 port built in as standard
  • Power supply: MI-1000A free-voltage SMPS (AC 85V-269V) / MI-1100A transformer type AC 110V-220V (DIP switch selectable)
  • Current loop and print, 1 port built in as standard
  • RS-232C serial interface (current loop), 1 port built in as standard
  • Options: RS422/485, 0-10V/4-20mA (analog output), BCD I/O (IN/OUT) (MI-1000A only)

Specifications

Input Sensitivity
0.2 ㎶/Digit
Load Cell Excitation
DC 5V
Max. Signal Input Voltage
Max. 32mV
Temperature Coefficient
[Zero] ± 20PPM/℃
[Span] ± 20PPM/℃
Input Noise
± 0.6 ㎶ P.P
Input Impedance
Over 10MΩ
A/D Conversion Method
Sigma-Delta
A/D Resolution (Internal)
520,000 counts (18 bit)
A/D Sampling Rate
Max. 200 times/sec
Non-Linearity
0.01% FS
Display Resolution (External)
1/30,000

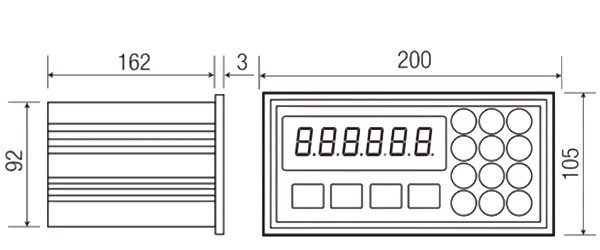

Dimensions and Panel Cut-out

Unit : mm


style=
style=
