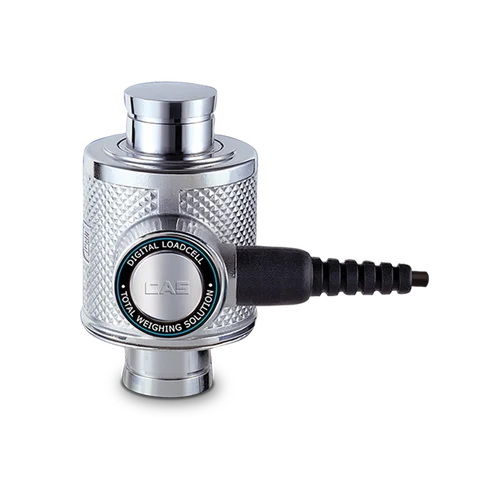

WBK-D Series(10~30ton)
For adoption and detailed specifications, please feel free to contact us.
- Brand
- CAS
- Tags
WBK-D Series(10~30ton)
Quote inquiryProduct details
Specifications - Load Cell
Specifications
Scroll horizontally to view the full table.Capacity(R.L.) | tf | 10, 20, 25, 30 | |
|---|---|---|---|
Rated output (R.O.) | counts | 300,000 | |
Zero balance | counts | ± 300 | |
Accuracy class | - | C4 | |
Non-linearity | % R.O. | < 0.015 | |
Hysteresis | % R.O. | < 0.015 | |
Combined error | % R.O. | < 0.015 | |
Repeatability | % R.O. | < 0.01 | |
Creep (30 min) | % R.O. | < 0.017 | |
Temperature effect | - Zero | % R.O./10℃ | 0.014 |
- Output | % R.O./10℃ | 0.011 | |
Compensated temperature range | ℃ | -10 ~ +40 | |
Operating temperature range | ℃ | -40 ~ +80 | |
Excitation voltage | - Min. excitation voltage | V | 6 |
- Recommended excitation voltage | V | 9 | |
- Max. excitation voltage | V | 24 | |
Insulation resistance | MΩ | ≥ 2,000 | |
Safe overload | % R.C. | 150 | |
Material and surface treatment | - | Stainless steel | |
Communication method | - | RS-485 (2wire) | |
Baud rate | kbit/sec | 19.2 | |
Max. communication cable length | m | 1,000 | |
Warm-up Time from Cold Start | minutes | 15 | |
Asynchronous Interface Baudrate | Baud | 9,600 ~ 115,200 | |
Number of bus addresses | - | Max. 32 | |
