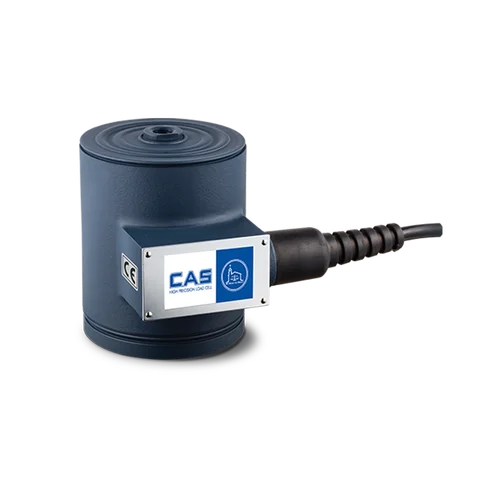

CT-NR Series(20~20ton)
For adoption and detailed specifications, please feel free to contact us.
- Brand
- CAS
- Tags
CT-NR Series(20~20ton)
Quote inquiryProduct details
Specifications - Load Cell
Specifications
Scroll horizontally to view the full table.Capacity(R.L.) | kgf | 20, 50, 100, 200, 300, 500, 1K, 2K, 3K, 5K, 10K, 20K | ||
|---|---|---|---|---|
Rated output (R.O.) | mV / V | 3.0 ± 0.003 | ||
Zero balance | mV / V | 0.0 ± 0.03 | ||
Accuracy class | - | A | B | |
Non-linearity | % R.O. | ≤ 0.02 | ≤ 0.05 | |
Hysteresis | % R.O. | ≤ 0.02 | ≤ 0.05 | |
Combined error | % R.O. | ≤ 0.02 | ≤ 0.05 | |
Repeatability | % R.O. | ≤ 0.01 | ≤ 0.02 | |
Creep (30 min) | % R.O. | ≤ 0.03 | ≤ 0.03 | |
Creep recovery (30 min) | % R.O. | ≤ 0.03 | ≤ 0.03 | |
Resolution | - | ≤ 1/5000 | ≤ 1/2000 | |
Scale interval | mV / V | 0.0006 | 0.0015 | |
Temperature effect | - Zero | %/10℃ | ≤ 0.03 | ≤ 0.03 |
- Output | %/10℃ | ≤ 0.03 | ≤ 0.03 | |
Excitation voltage | - Recommended excitation voltage | V | 10 | |
- Max. excitation voltage | V | 15 | ||
Resistance | - Input resistance | Ω | 350 ± 3.5 | |
- Output resistance | Ω | 350 ± 3.5 | ||
- Insulation resistance | MΩ | ≥ 500 | ||
Compensated temperature range | ℃ | -10 to +40 | ||
Operating temperature range | ℃ | -30 to +80 | ||
Material and surface treatment | - | Steel / painted | ||
Cable specification | - | Ø8 x 4P x 5m / Ø8 x 4P x 10m (PVC) | ||
Safe overload | % R.L. | 150 | ||
Electrical Character | - Over Voltage | V, % | 75 AC/DC ±25% | |
- RS | MHz | 80 ~ 1000MHz, 10V/m | ||
- Surge | kV | ±2 | ||
